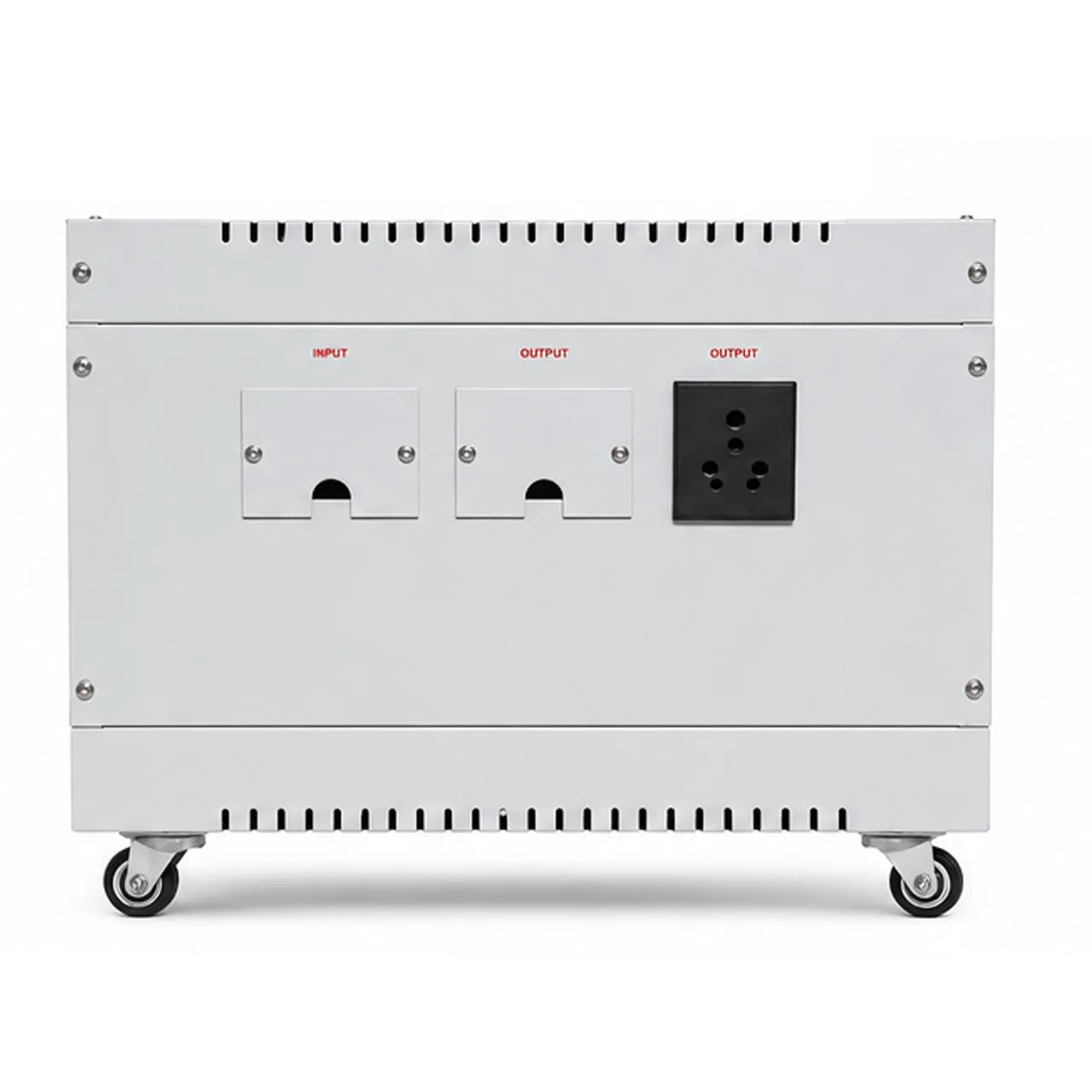

Constant Voltage Transformers
Ferroresonant CVTs for ultra-fast voltage regulation and harmonic isolation.
Maintenance Free
Fast Correction
Galvanic Isolation
Our Constant Voltage Transformer (CVT) provides instant voltage regulation, total galvanic isolation, and sine-wave restoration for sensitive electronic and microprocessor-based systems.
Key Features
- Maintenance Free (No Moving Parts)
- Very Fast Correction Speed
- Zero Voltage Potential Between Neutral And Ground
- Total Galvanic Isolation
- Protected Against Overload Short Circuit
- Rectifies Distorted Input Wave Forms Sine Wave Forms
Technical Specifications
| Power | 500 VA |
| Capacity | 150 VA to 5 KVA |
| Input Voltage | 18-280 V |
| Output Voltage | 230 V +/- 1% |
| Frequency | 50 Hz |
| Efficiency | 80% (with full load) |
| Rate of Correction | 250 volts/second |
| Coupling Capacitance | Less than 0.05PF |
| Dielectric Strength | 2000 VAC for 2 min |
| Audible Noise | More than 50dp |
| Optional | High/Low voltage cut off time delay |
